SCUPC Armoured Fiber Optic Cable Patch Cord With Lateral Pressure Protected

Name: SCUPC Armoured Fiber Optic Cable Patch Cord With Lateral Pressure Protected
Brand: hanxin or OEM
Price: 1 USD

China SCUPC Armoured Fiber Optic Cable Patch Cord With Lateral Pressure Protected factory

Brand Name : hanxin or OEM

Model Number : SCUPC

Certification : ROHS, ISO9001

Place of Origin : Shenzhen ,China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5000 pcs per week

Delivery Time : 3-7 working days

Packaging Details : PP bag and carton

Connector type : SCUPC

Cable Type : Armoured

Connector color : Blue

Cable color : Blue

Cable jacket : PVC/LSZH

Application : FTTX PON CATV

Length : 1M,2M,3M,Customized

Quality control : 100% test before shipping

Contact Now

SCUPC Armoured Fiber Optic Cable Patch Cord With Lateral Pressure Protected

The biggest difference between armoured patchcords with other patchcords is not easy to be damaged, because of a small stainless steel casing out of the fiber. Armoured patchcords use flame-retardant PVC. This design can make project convenient and lengthen the fiber life.

Application:

optical fiber sensor, telecommunication equipment

optical fiber communication system, LAN

TV, communication allocation, National defense.

Test equipments, Active optic device

FTTH

Features:

High tensile strength

Lateral pressure protected

Defense rat

Soft, strong adaptability

project convenient

low insertion loss, high return loss

Realize the active link of optic fiber transmission

Specifications:

	SM			MM
connector type	FC/PC	FC/UPC	FC/APC	FC/PC
	SC/PC	SC/UPC	SC/APC	SC/PC
	ST/PC	ST/UPC		ST/PC
	LC/PC	LC/UPC		LC/PC
return loss	≥45dB	≥50dB	≥60dB	≥35 dB
insertion loss	≤0.2dB
operating temperature	-40℃~+80℃
repeatability	≤0.1dB
interchangeability	≤0.2dB
Plug times	1000 times
tensile strength	>100N

SCUPC Armoured Fiber Optic Cable Patch Cord With Lateral Pressure Protected

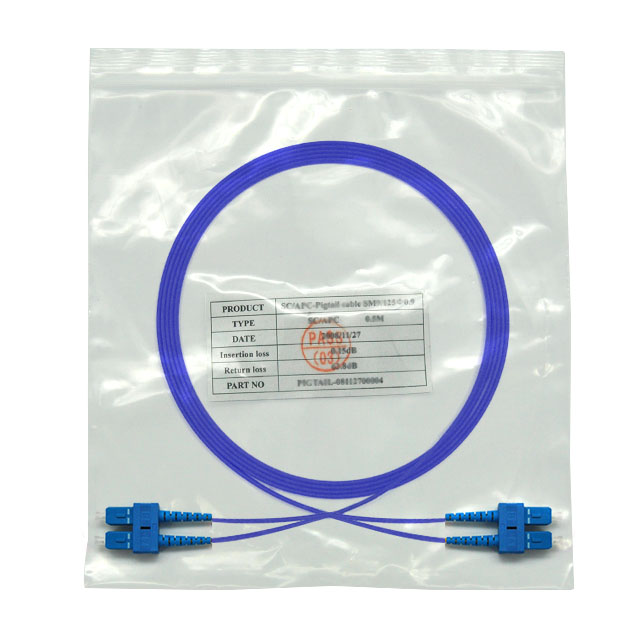

Packaging

Product Tags:

fiber optic cable patch cord

fiber optic jumper

SCUPC Armoured Fiber Optic Cable Patch Cord With Lateral Pressure Protected Images
