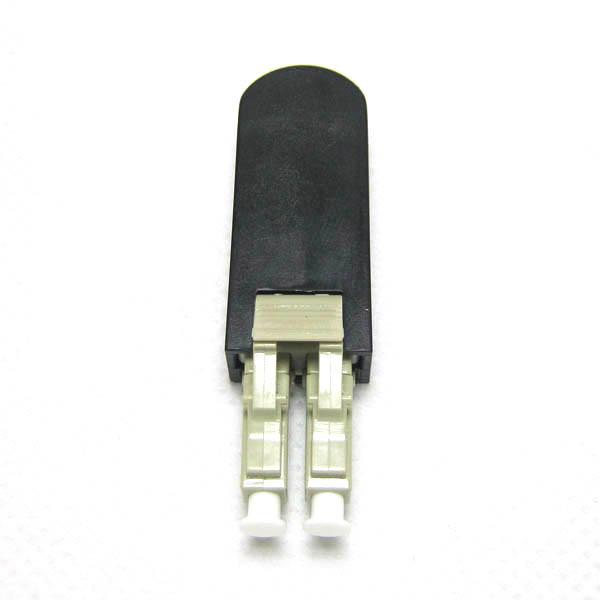

LC Loopback Fiber Optic Patch Cord FTTH Single Mode Fiber Optic LC Loopback

Han Xin Communications Limited
Contact Now

LC Loopback Fiber Optic Patch Cord FTTH Single Mode Fiber Optic LC Loopback

Brand Name : hanxin or OEM

Model Number : LC

Certification : ROHS, ISO9001

Place of Origin : Shenzhen ,China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5000 pcs per week

Delivery Time : 3-7 working days

Packaging Details : PP bag and carton

Fiber Type : SM MM

Cable jacket : PVC/LSZH

Application : FTTX PON CATV

Name : Fiber Optic Patch Cord

Insertion Loss : ≤0.3dB

Contact Now

LC Loopback Fiber Optic Patch Cord FTTH Single Mode Fiber Optic LC Loopback

LC SC MTRJ Loopback Fiber Patch Cord is designed to return media. This is typically used for testing and network diagnostics. Loopbacks are useful for testing equipment to determine where a fault might lie. These have a very compact design, and like all of our products, may be custom ordered to have different lengths, jackets, etc. Our loopbacks are compliant with ATM, fast Ethernet, fiber channel, and gigabit Ethernet, and are available in Multimode and Single mode. Call or email today to place an order or ask about our additional options.

Specification

Loopback cable for many test applications

Multimode, 50/125 fiber optic cable

With precision ceramic ferrule for maximum optical performance

Molded connector to secure connection

Fully tested cables to ensure superior quality and durability

Operating Wavelength: 850 nm for Multimode; 1310/1550nm for Singlemode

Features

RoHS compliant for all Loopback fiber optic patch cords material

Usage

Telecom Network

Optical communication system

Fiber access network

CATV

Optical fiber LAN

Technical Data

Item Parameter
Single-mode Multi-mode
Insertion Loss ≤0.3dB
Return Loss ≥50 dB (PC), ≥60 dB (APC)
Repeatability ≤0.1dB
Durability 0.2dB Max. 1000 mattings
Operating Temperature -40℃~+85℃
Storage Temperature -40℃~+85℃

LC Loopback Fiber Optic Patch Cord FTTH Single Mode Fiber Optic LC Loopback

LC Loopback Fiber Optic Patch Cord FTTH Single Mode Fiber Optic LC Loopback

LC Loopback Fiber Optic Patch Cord FTTH Single Mode Fiber Optic LC Loopback
