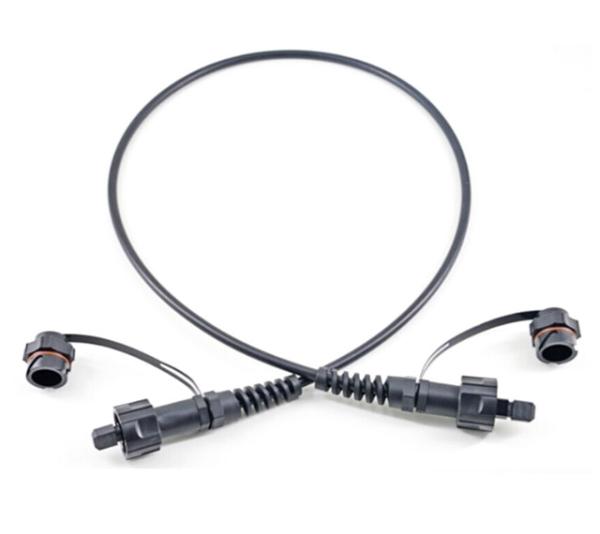

ODVA - MPO 7.0mm FTTA Outdoor Optical Fiber Waterproof IP67 Patch Cord

Name: ODVA MPO 70mm FTTA Outdoor Optical Fiber Waterproof IP67 Patch Cord
Brand: Hanxin or OEM
Price: 1 USD

China ODVA - MPO 7.0mm FTTA Outdoor Optical Fiber Waterproof IP67 Patch Cord factory

Brand Name : Hanxin or OEM

Model Number : ODVA-MPO

Certification : ROHS,ISO9001

Place of Origin : Shenzhen,China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000PCS per week

Delivery Time : 3-7 working days

Packaging Details : Carton

Product Type : CPRI Optical Cable ODVA Connector in FTTA

Application : 3G 4G base station used

Feature : Waterproof, fireproof and UV resistant

Color : Black

Advantage : IP67 Protection, Salt-mist proof

Fiber Core : 2,4…12

Contact Now

ODVA - MPO 7.0mm FTTA Outdoor Optical Fiber Waterproof IP67 Patch Cord

Description

ODVA BBU RRU Patch Cable is for CPRI application,that widely used in 3G,4G and WIMAX base station, Long term Evolution(LTE),and Remote Radio Units to the FTTA connectivities.

ODVA BBU/RRU Patch cables, together with IP-67 rated compact RRH/RRU Helix cover connectors that have fast coupling. these patch cables are always sealed with rugged fiber terminal junction boxes that meet the requirements of more antennas on a wireless tower.

With the development of distributed antenna syatems(DAS), ODVA connectors has become a standard interface for the new generation wireless base station linked to the FTTA equipment that set up outdoor environment.

Typical Usages

FTTA,FTTH Application
3G,4G Base Station
Horizontal and Vertical Cabling
BBU,RRU,RRH,LTE

Typical Advantage

IP67 Protection, Salt-mist proof
Fully Water-blocked
Wall Seal Design, Easy Operation, Cost-effective Installation
Light Weight, Dustproof and Waterpoof

Performance Parameters

Connector	End A	Compact RRH/BBU Helix Cover Connector
	End B	DLC (duplex LC),or SC,FC,ST,MPO,MTP......
Fiber Core		2,4…12
Mode		Singlemode			Multimode
Operating Wavelength(nm)		1310/1550			850/1310
Polishment		UPC	APC		UPC
Insertion Loss(Max.dB)		0.2			0.3
Return Loss(Min.dB)		55		60	35
Mating times		500 Min
Durability(Max.dB)		0.2
Reaptability(Max.dB)		0.5
Operating Temperature(℃)		-40~+85
Storage Temperature(℃)		-40~+85

ODVA - MPO 7.0mm FTTA Outdoor Optical Fiber Waterproof IP67 Patch Cord
